Rapid Prototyping vs. Conventional Prototyping

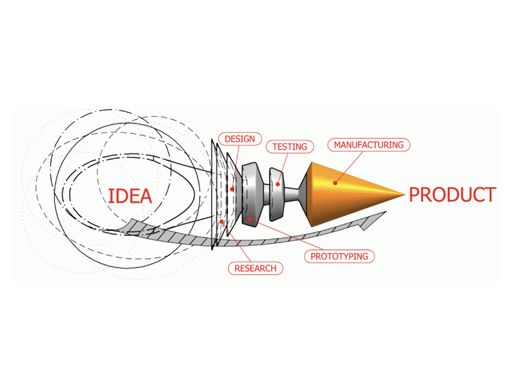

Rapid prototyping has transformed the landscape of new product development by utilizing digital manufacturing methods that allow designs to transition directly from a CAD drawing to a finished plastic or metal part in just a few hours or days, eliminating the need for costly and time-consuming tooling. This enables designers and manufacturing partners to quickly produce multiple iterations and test various design options simultaneously, leading to a more efficient and effective product development process.

The advent of rapid prototyping has revolutionized the traditional approach to product development, as it allows for the direct transition from a CAD drawing to a finished plastic or metal part in a matter of hours or days, bypassing the need for expensive and time-consuming tooling. This streamlined process enables designers and manufacturing partners to swiftly produce multiple iterations and test various design options simultaneously, resulting in a more efficient and effective product development cycle.

Advantages of Rapid Prototyping

Rapid prototyping offers numerous benefits to part designers, such as:

- Shortening design and development timelines

- Creating physical models for feedback collection

- Validating design assumptions regarding form, fit, and functionality

- Saving time and money by eliminating the need for tooling

- Identifying and addressing design flaws prior to production

- Speeding up the product launch process, providing a competitive edge.

Applications of Rapid Prototyping

Due to its utility and versatility, rapid prototyping has been widely adopted for various common applications, including:

- Visual prototypes and concept models

- Functional prototypes

- Pre-production prototypes

- Validation of form, fit, and function before production tooling

- Accuracy testing of jigs and fixtures

- Building molds for prototypes

- Marketing mockups for trade shows

What Are The Different Types Of Rapid Prototyping?

Rapid prototyping mainly includes several technologies: 3D printing technology quickly creates models by stacking materials layer by layer; vacuum casting uses silicone molds to produce small batches of high-quality parts; rapid tool manufacturing provides fast-made molds for injection molding; CNC machining uses computer-controlled mechanical equipment to accurately process materials, suitable for making complex parts. These technologies have their own characteristics and are suitable for different prototype needs.

Rapid 3D Printing Processes:

3D printing is the most common rapid prototyping process, primarily due to its speed and affordability. At thingyfy, some 3D printed parts can be produced and shipped within a single day at a minimal cost.

The three most commonly used 3D printing processes for rapid prototyping are selective laser sintering (SLS), stereolithography (SLA), and fused deposition modeling (FDM).

- Selective Laser Sintering (SLS): This method is highly versatile, offering a combination of speed, functional mechanical properties, good detail resolution, and low costs.

- Stereolithography (SLA): Known for providing the best surface finish, highest detail accuracy, and precise tolerances. SLA is particularly effective for prototyping clear parts, especially with the QuickClear finish available for some materials.

- Fused Deposition Modeling (FDM): This versatile additive technology can help you with your rapid prototyping, part validation and low-volume production needs, using the same thermoplastic materials you use for injection molding.

Rapid CNC Machining:

Metal or plastic parts can be machined in a fraction of the time, making it easy to iterate on part designs and accelerate time to market. This manufacturing method produces parts with high precision and accuracy, and tighter tolerances than injection molding or additive manufacturing. CNC machined parts have longer lead times than 3D printing due to additional machine setup and run time. 3D printing is performed through a direct digital manufacturing process, requiring minimal setup or post-processing.

CNC milling and CNC turning are excellent rapid prototyping options for parts that require prototypes to be cut from fully dense stock and evaluated for their final material.

- CNC milling: Ideal for creating intricate parts with complex geometries. It involves removing material from a solid block to achieve the desired shape, making it perfect for prototypes requiring high precision and tight tolerances.
- CNC turning: Best suited for cylindrical parts. This process involves rotating the workpiece while a cutting tool shapes it, allowing for the production of parts with excellent surface finishes and precise dimensions.

Rapid Injection Molding

Rapid Injection Molding is a process used to produce parts that are as close to the final geometry as possible, despite being slower than 3D printing or CNC machining. Its main advantage lies in its high repeatability and the ability to create near-net final shapes, making it essential for producing large quantities of parts with consistent quality.

Vacuum Casting:

Vacuum Casting is a manufacturing process used to create high-quality plastic or rubber parts. It involves pouring a liquid material into a silicone mold under vacuum to prevent air bubbles and ensure precision. Key features include excellent surface finish, high detail accuracy, and the ability to replicate complex geometries. Vacuum Casting is commonly used for prototyping, small batch production, and producing functional parts for testing and validation.

How To Choose The Right Rapid Prototyping Technique

Choosing the right prototyping method requires considering budget, part complexity, prototype functionality, and development timeline. High-quality prototypes are usually more expensive and take longer to make, but more closely reflect the form, fit, and function of the production part.

When choosing, ask yourself these basic questions:

1. Is the prototype a static display model?

2. Does it need to be fully functional?

3. Does it involve multiple interconnected parts?

4. What are the surface texture and treatment requirements?

5. What materials are used?

6. How important are strength and durability?

7. How closely will it match the final production version?
